Vertical hub turning center
Product features
The vertical wheel hub turning center is mainly used for rough and fine turning of common 14-26 inch carburetor wheel hubs, with advantages such as high efficiency, uniform patterns, and stable performance.Mod+86 130-4748-2822
Configuration
Vertical hub turning centerTechnical Parameter
| Project | Parameter | ||
| Rotating diameter | φ900 | ||
| Cutting diameter | φ730 | ||
| Processing height | 350 | ||
| X-axis | X1 (left) outer wheel rim | 0~480 | |
| X2 (right) inner wheel rim | -40~440 | ||
| Z1 and Z2 axes | 0~540 | ||
| Main shaft | speed | 2500rpm | |
| Nose | A2-11 | ||
| Shaft diameter | φ180mm | ||
| Power | 55/65kw | ||
| Servo feed | Quick feed | 20m/min | |
| model | aiF22-3000(X1、X2)aiF22B-3000(Z1、Z2) | ||
| External dimensions (length x width x height) | 3552×2991×3384 mm | ||
| Complete machine weight | Approximately 21t | ||
Video

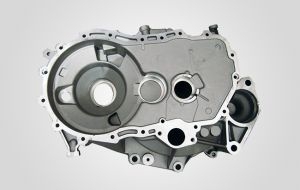

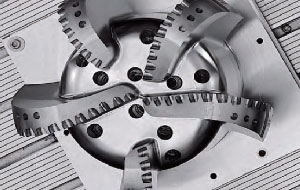

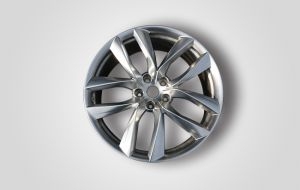

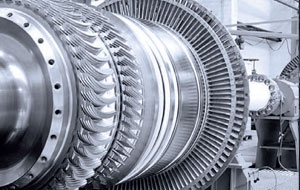

Application
Application
Application
Application
Application
