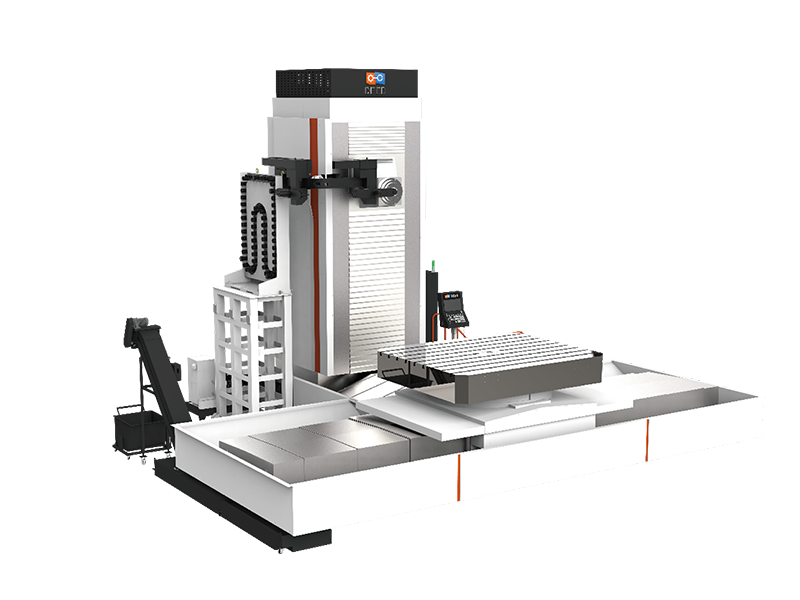

HBP series planer type milling and boring machining center

HBP series planer type milling and boring machining center

Product features

This series of machine tools is a planer type milling and boring machining center. The workbench moves left and right on the front bed (X-axis), the spindle box moves up and down on the column (Y-axis), the column moves back and forth on the rear bed (Z-axis), the boring axis moves back and forth (W-axis), and the Workbench rotation (B-axis). The front and rear beds are made of new mineral materials, which provide more stability.

Mod+86 130-4748-2822

Configuration

HBP series planer type milling and boring machining centerTechnical Parameter

Project		Unit	HBP1120	HBP1330	HBP1645
Machine range	Horizontal (X-axis) stroke of workbench	mm	2000	3000	4500
	Vertical (Y-axis) travel of spindle box	mm	1600	2000	2500
	Vertical (Z-axis) stroke of the column	mm	1200	1600	2000
	Boring axis (W-axis) stroke	mm	550	700	1000
	Workbench rotation (B-axis) positioning stroke 2		Automatic continuous 360 °
	Distance range from boring axis center to worktable	mm	0～1600	0～2000	0～2500
	The range of distance between the end face of the boring shaft and the center of the workbench	mm	-15～1735	-15～2285	-15～2985
Staging	Workbench size	mm	1400×1600	1800×2200	2500×3000
	T-shaped groove (size x quantity x spacing)	mm	22×7×180	28×7×220	36×9×250
	Minimum angle of workbench rotation	°	0.001（Arbitrary division）
		kg	10000	20000	35000
Main shaft	spindle taper/Specification of pulling nails/tool handles		7：24（ISO BT50）/ BT50-45°/ BT50
	Boring spindle diameter	mm	φ110	φ130	φ160
	Spindle power(S1/S6)	Kw	22/26	37/45	58/74
	Boring shaft speed	rpm	10～3000	10～2500	10～2000
	Rated output torque of the spindle(S1/S6)	Nm	1155/1369	2500/3020	3976/5065
Feed	Feed rate X/Y/Z/W axis	mm/min	2～8000
	Maximum rotation speed of the workbench	rpm	5	5	2
	Fast moving speed	m/min	X:16 Y:16 Z:10 W:10
accuracy	Positioning accuracy（semi-closed loop/closed loop）	mm	X/Y/Z 0.025/0.015		W（semi-closed loop） 0.025
	repeatPositioning accuracy（semi-closed loop/closed loop）		X/Y/Z 0.015/0.008		W（semi-closed loop） 0.02
	Workbench rotation (B-axis)Positioning accuracy		8
	Workbench rotation (B-axis)repeatPositioning accuracy		4
magazine	magazine capacity	Put	32/40/60
	Maximum weight of cutting tools/average weight	Kg	25/15
	Maximum tool size (Full blade diameter/empty edge blade diameter x length)	mm	φ125/φ250×400
complete machine	Battery capacity	KVA	60	90	150
	Machine weight	kg	35000	50000	90000
	Machine tool footprint (length x width x height)	m	8×8×5.5	9.5×9.3×6	12×12×7
