Location： Home - G-MB series - Moving beam gantry boring and milling machining center

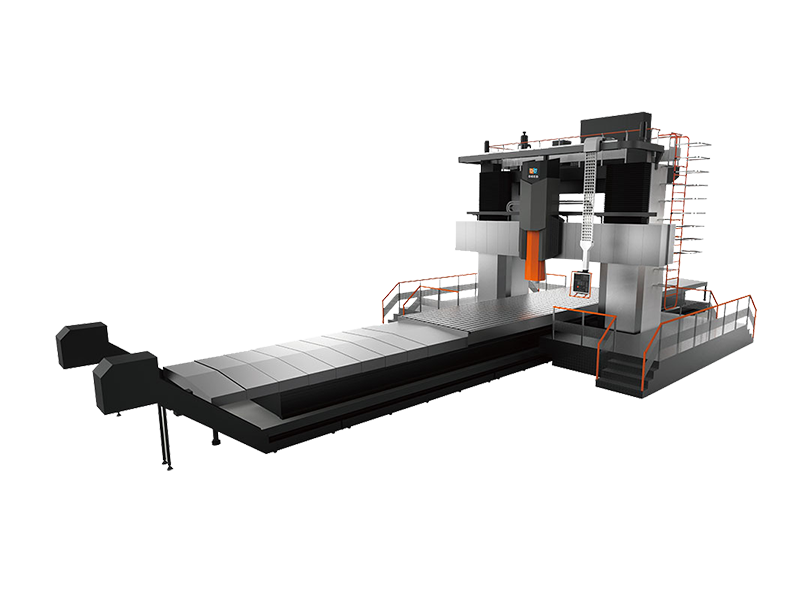

G-MB series dynamic beam gantry boring and milling machining center

Product features

　　The G-MB series is used for the processing of heavy and ultra heavy basic parts, especially suitable for CNC machining of various planes, surfaces, spatial surfaces, and holes of black metal and non-ferrous metal with large weight and long workpiece length. Widely used in the mechanical manufacturing industry for rough and precision machining of various complex parts such as boards, boxes, and frames.

Mod+86 130-4748-2822

Configuration

Technical parameters of G-MB series dynamic beam gantry boring and milling machining center

Project		Unit	G10540MB
Machine range	X/Y/Z/W four-axis travel	mm	10500/4600/1250/2400
	Spindle nose table surface	mm	0-260
	Door width	mm	4000
Staging	Workbench size	mm	10000×3000
		T	40
	T-slot	mm	36
Feed	X/Y/Z/W axis fast movement speed	m/min	10/10/10/2
Feed	Maximum cutting speed of X/Y/Z axis	m/min	6/6/6
Main shaft	Driving method		Maximum load capacity of workbench
	spindle taper		BT50
	Maximum speed	r/min	3000
	Power (rated/30min)	KW	37/51
	Torque (rated/30min)	Nm	1295/1785

Video

Application

Application

Standard Configuration

CNC system Siemens ONE

Spindle constant temperature system

Automatic Lubrication System

Z-axis balance system

Workpiece air cooling system

Workpiece water cooling system

Automatic chip removal device

Internal protection

External protection

Cleaning air gun

Warning lights

Work lights

Electric cabinet air conditioning

Dust prevention of spindle air curtain

Standard accessory

Grating ruler

Which option is most suitable for you?

FANUC 0i-MF SIEMENS 828D

Circular knife magazine 24T/30T

Chain tool magazine 32T/40T

Vertical and horizontal knife storage 40T/60T

Increase the overall height of the column by 200mm

Column height increase by 400mm

Z-axis travel extension

Center effluent（20/30/50bar）

Voltage regulator

Closed operating room

Oil water separation device

Manual accessory milling heads: right angle head, extension head, universal head, right angle extension head, double end right angle milling head, vertical and horizontal head, optional tooth disc positioning

Automatic/semi-automatic accessory milling heads: right angle head, extension head, universal head, right angle extension head

Automatic measuring device for workpieces

Automatic tool measuring device

Workpiece cleaning water gun

Spindle ring spray

Foundation subsidence

CNC rotary worktable (fourth axis)
