Horizontal lathe
Product features

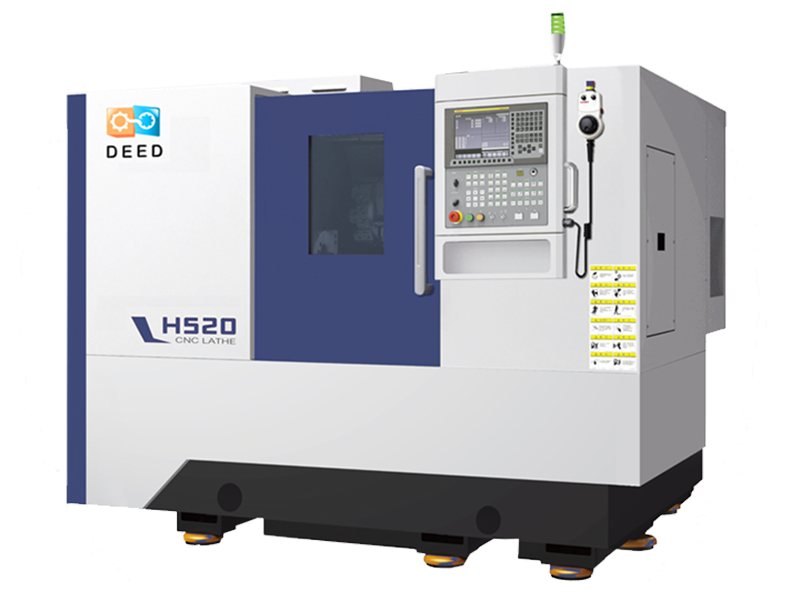

The horizontal lathe adopts an integral inclined bed, integral sleeve main shaft, hydraulic sleeve tailstock, integral external protection, and independent internal protection system. It is a fully functional horizontal CNC lathe with high quality, high reliability, and high cost-effectiveness.Mod+86 130-4748-2822
Configuration
Horizontal latheTechnical Parameter
| Project | Unit | specifications | notes | |
| H520 | ||||
| Turning diameter on the bed | mm | 520 | ||
| Turning diameter on skateboard | mm | 300 | ||
| Cutting length | mm | 600 | ||
| Cutting diameter | mm | 360 | Horizontal 8-station | |
| Standard Cutting Diameter | mm | 210 | ||
| Main shaft end type and code | A2-6 | |||
| Main shaft hole diameter | mm | 65 | ||
| Processing bar diameter | mm | 50 | ||
| Main shaft box | Main shaftspeed range | r/min | 50～4500 | |
| Main shift continuous | Nm | 130 | Wide number system | |
| torque | Nm | 130 | fanuc system | |
| Main shaft | Nm | 177 | Wide number system | |
| torque | Nm | 235 | fanuc system | |
| Main shaftspeed level | stepless speed change | |||
| Main motor output power | kW | 11 (rated)/15 (30 minutes) | Wide number system | |
| chuck | Chuck diameter/type | mm | 82 | |
| X-axis fast movement speed | m/min | 30 | ||
| Z-axis fast movement speed | m/min | 30 | ||
| VF series vertical cradle five axis machining center | mm | 200 | ||
| Z-axis stroke | mm | 650 | ||
| Tail seat trip | mm | 450 | ||
| Tail seat sleeve trip | mm | 100 | ||
| Tailstock sleeve tapered hole tap | mohs | 5# | ||
| Bearing | Disk components | kg | 200 | Including chuck and other machine tool accessories |
| Axis components | kg | 500 | ||
| Machine weight | kg | 4300 | ||
| overall dimension | mm | 2555×169×1750 | Excluding Chip conveyor | |
| (length x width x height) | ||||
