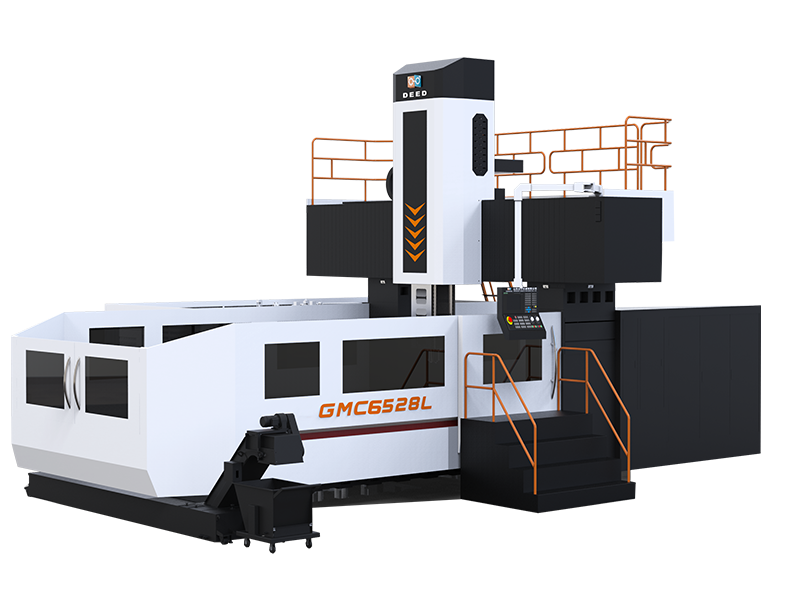

GMC series gantry machining center

Product features

　本設備是蒂德公司與德國合作研發的最新一款精密龍門銑加工中心。該機床特別適用于各行業金屬等零件精密、高速及重切加工，機床可完成銑面、鏜孔、鉆孔、剛性攻絲及三軸聯動曲面加工，并可根據客戶要求增加直角銑頭,一次裝夾實現五面加工，可有效提高加工accuracy和加工效率。

Mod+86 130-4748-2822

Configuration

Technical parameters of GMC series gantry machining center

GMC16系列

GMC20系列

GMC24系列

GMC28系列

GMC32系列

GMC37系列

Model	Unit	GMC2016L	GMC2516L	GMC3016L	GMC3516L	GMC4016L
Door width	mm	1600	1600	1600	1600	1600
X-axis	mm	2000	2500	3000	3500	4000
Y-axis	mm	1600	1600	1600	1600	1600
Z-axis	mm	850	850	850	850	850
Distance from spindle nose to workbench	mm	200-1050	200-1050	200-1050	200-1050	200-1050
Workbench width	mm	1250	1250	1250	1250	1250
T-slot	mm	22	22	22	22	22
Bearing	t	5	6	8	9	10
Spindle speed	r/min	8000	8000	8000	8000	8000
Spindle form		BT50	BT50	BT50	BT50	BT50
Power	Kw	22/26	22/26	22/26	22/26	22/26
Torque	N.m	560/660	560/660	560/660	560/660	560/660
Section of spindle box	mm	400	400	400	400	400
Specification of spindle cone hole		BT50（HSK63	BT50（HSK63	BT50（HSK63	BT50（HSK63	BT50（HSK63
X-axis fast movement speed	m/min	16	16	16	16	16
Y-axis fast movement speed	m/min	16	16	16	16	16
Z-axis fast movement speed	m/min	16	16	16	16	16
Cutting Speed	m/min	12	12	12	12	12
Positioning accuracy X (semi closed loop)	mm	0.014	0.016	0.018	0.02	0.021
Positioning accuracy Y (semi closed loop)	mm	0.014	0.014	0.014	0.014	0.014
Positioning accuracy Z (semi closed loop)	mm	0.011	0.011	0.011	0.011	0.011
Repetitive positioning accuracy X (semi closed loop)	mm	0.009	0.011	0.011	0.013	0.014
Repetitive positioning accuracy Y (semi closed loop)	mm	0.009	0.009	0.009	0.009	0.009
Repetitive positioning accuracy Z (semi closed loop)	mm	0.006	0.006	0.006	0.006	0.006
Battery capacity	Kva	60	60	60	60	60
Mpa	Mpa	0.65	0.65	0.65	0.65	0.65
Machine tool height	mm	5100	5100	5100	5100	5100
Land area	mm×mm	7520×4955	7850×4955	9000×4955	10250×4955	11250×4955
Net weight	T	24	26	27.5	29.5	35
operating system		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS

Model	Unit	GMC2020L	GMC2520L	GMC3020L	GMC3520L	GMC4020L
Door width	mm	2000	2000	2000	2000	2000
X-axis	mm	2000	2500	3000	3500	4000
Y-axis	mm	2000	2000	2000	2000	2000
Z-axis	mm	850	850	850	850	850
Distance from spindle nose to workbench	mm	200-1050	200-1050	200-1050	200-1050	200-1050
Workbench width	mm	1600	1600	1600	1600	1600
T-slot	mm	22	22	22	22	22
Bearing	t	5	6	8	9	10
Spindle speed	r/min	8000	8000	8000	8000	8000
Spindle form		BT50	BT50	BT50	BT50	BT50
Power	Kw	22/26	22/26	22/26	22/26	22/26
Torque	N.m	560/660	560/660	560/660	560/660	560/660
Section of spindle box	mm	400	400	400	400	400
Specification of spindle cone hole		BT50	BT50	BT50	BT50	BT50
X-axis fast movement speed	m/min	16	16	16	16	16
Y-axis fast movement speed	m/min	16	16	16	16	16
Z-axis fast movement speed	m/min	16	16	16	16	16
Cutting Speed	m/min	12	12	12	12	12
Positioning accuracy X (semi closed loop)	mm	0.014	0.016	0.018	0.02	0.021
Positioning accuracy Y (semi closed loop)	mm	0.017	0.017	0.017	0.017	0.017
Positioning accuracy Z (semi closed loop)	mm	0.011	0.011	0.011	0.011	0.011
Repetitive positioning accuracy X (semi closed loop)	mm	0.009	0.011	0.011	0.013	0.014
Repetitive positioning accuracy Y (semi closed loop)	mm	0.009	0.009	0.009	0.009	0.009
Repetitive positioning accuracy Z (semi closed loop)	mm	0.006	0.006	0.006	0.006	0.006
Battery capacity	Kva	60	60	60	60	60
Mpa	Mpa	0.65	0.65	0.65	0.65	0.65
Machine tool height	mm	5100	5100	5100	5100	5100
Land area	mm×mm	7520×5400	7850×5400	9000×5400	1025×5400	11250×5400
Net weight	T	25	27	28	31	36
operating system		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS

Model	Unit	GMC3024L	GMC3524L	GMC4024L	GMC4524L
Door width	mm	2400	2400	2400	2400
X-axis	mm	3000	3500	4000	4500
Y-axis	mm	3000	3000	3000	3000
Z-axis	mm	850	850	850	850
Distance from spindle nose to workbench	mm	200-1050	200-1050	200-1050	200-1050
Workbench width	mm	1800	1800	1800	1800
T-slot	mm	22	22	22	22
Bearing	t	15	13	17	18
Spindle speed	r/min	8000	8000	8000	8000
Spindle form		BT50	BT50	BT50	BT50
Power	Kw	22/26	22/26	22/26	22/26
Torque	N.m	560/660	560/660	560/660	560/660
Section of spindle box	mm	400	400	400	400
Specification of spindle cone hole		BT50	BT50	BT50	BT50
X-axis fast movement speed	m/min	16	16	16	16
Y-axis fast movement speed	m/min	16	16	16	16
Z-axis fast movement speed	m/min	16	16	16	16
Cutting Speed	m/min	8	8	8	8
Positioning accuracy X (semi closed loop)	mm	0.018	0.02	0.021	0.024
Positioning accuracy Y (semi closed loop)	mm	0.018	0.018	0.018	0.018
Positioning accuracy Z (semi closed loop)	mm	0.011	0.011	0.011	0.011
Repetitive positioning accuracy X (semi closed loop)	mm	0.011	0.013	0.014	0.015
Repetitive positioning accuracy Y (semi closed loop)	mm	0.012	0.012	0.012	0.012
Repetitive positioning accuracy Z (semi closed loop)	mm	0.006	0.006	0.006	0.006
Battery capacity	Kva	60	60	60	60
Mpa	Mpa	0.65	0.65	0.65	0.65
Machine tool height	mm	5000	5000	5000	5000
Land area	mm×mm	9800×6000	10800×6000	11800×6000	12800×6000
Net weight	T	30	33	36.5	40
operating system		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS

Model	Unit	GMC3028L	GMC3528L	GMC4028L	GMC4528L	GMC5028L	GMC5528L	GMC6528L
Door width	mm	2800	2800	2800	2800	2800	2800	2800
X-axis	mm	3000	3500	4000	4500	5000	5500	6000
Y-axis	mm	3600	3600	3600	3600	3600	3600	3600
Z-axis	mm	1250	1250	1250	1250	1250	1250	1250
Distance from spindle nose to workbench	mm	400-1650	400-1650	400-1650	400-1650	400-1650	400-1650	400-1650
Workbench width	mm	2600	2600	2600	2600	2600	2600	2600
T-slot	mm	22	22	22	22	22	22	22
Bearing	t	17	18	20	22	24	28	32
Spindle speed	r/min	6000	6000	6000	6000	6000	6000	6000
Spindle form		Direct connection type	Direct connection type	Direct connection type	Direct connection type	Direct connection type	Direct connection type	Direct connection type
Power	Kw	22/26	22/26	22/26	22/26	22/26	22/26	22/26
Torque	N.m	770/910	770/910	770/910	770/910	770/910	770/910	770/910
Section of spindle box	mm	450	450	450	450	450	450	450
Specification of spindle cone hole		BT50	BT50	BT50	BT50	BT50	BT50	BT50
X-axis fast movement speed	m/min	12	12	12	12	12	12	12
Y-axis fast movement speed	m/min	12	12	12	12	12	12	12
Z-axis fast movement speed	m/min	12	12	12	12	12	12	12
Cutting Speed	m/min	10	10	10	10	10	10	10
Positioning accuracy X (semi closed loop)	mm	0.018	0.02	0.021	0.024	0.025	0.026	0.027
Positioning accuracy Y (semi closed loop)	mm	0.02	0.02	0.02	0.02	0.02	0.02	0.02
Positioning accuracy Z (semi closed loop)	mm	0.014	0.014	0.014	0.014	0.014	0.014	0.014
Repetitive positioning accuracy X (semi closed loop)	mm	0.011	0.013	0.014	0.015	0.016	0.018	0.021
Repetitive positioning accuracy Y (semi closed loop)	mm	0.013	0.013	0.013	0.013	0.013	0.013	0.013
Repetitive positioning accuracy Z (semi closed loop)	mm	0.008	0.008	0.008	0.008	0.008	0.008	0.008
Battery capacity	Kva	60	60	60	60	60	60	60
Mpa	Mpa	0.65	0.65	0.65	0.65	0.65	0.65	0.65
Machine tool height	mm	6600	6600	6600	6600	6600	6600	6600
Land area	mm×mm	9950×7400	10250×7400	11250×7400	12250×;7400	13250×740	14250×7400	16250×7400
Net weight	T	49.7	54.5	54.5	63	70	78	83
operating system		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS

Model	Unit	GMC5532L	GMC6532L	GMC8532L	GMC10532L
Door width	mm	3200	3200	3200	3200
X-axis	mm	5500	6500	8500	10500
Y-axis	mm	4000	4000	4000	4000
Z-axis	mm	1250	1250	1250	1250
Distance from spindle nose to workbench	mm	400-1650	400-1650	400-1650	400-1650
Workbench width	mm	2800	2800	2800	2800
T-slot	mm	28	28	28	28
Bearing	t	28	32	36	40
Spindle speed	r/min	6000	6000	6000	6000
Spindle form		Direct connection type	Direct connection type	Direct connection type	Direct connection type
Power	Kw	22/26	22/26	22/26	22/26
Torque	N.m	770/910	770/910	770/910	770/910
Section of spindle box	mm	450	450	450	450
Specification of spindle cone hole		BT50	BT50	BT50	BT50
X-axis fast movement speed	m/min	12	12	12	12
Y-axis fast movement speed	m/min	12	12	12	12
Z-axis fast movement speed	m/min	12	12	12	12
Cutting Speed	m/min	10	10	8	8
Positioning accuracy X (semi closed loop)	mm	0.026	0.031	0.035	0.044
Positioning accuracy Y (semi closed loop)	mm	0.021	0.021	0.021	0.021
Positioning accuracy Z (semi closed loop)	mm	0.014	0.014	0.014	0.014
Repetitive positioning accuracy X (semi closed loop)	mm	0.018	0.021	0.023	0.029
Repetitive positioning accuracy Y (semi closed loop)	mm	0.014	0.014	0.014	0.014
Repetitive positioning accuracy Z (semi closed loop)	mm	0.008	0.008	0.008	0.008
Battery capacity	Kva	60	60	60	60
Mpa	Mpa	0.65	0.65	0.65	0.65
Machine tool height	mm	6600	6600	6600	6600
Land area	mm×mm	14100×7400	16100×7400	21500×7400	25500×7400
Net weight	T	83	95	115.5	130
operating system		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS

Model	Unit	GMC5537L	GMC6537L	GMC8537L	GMC10537L
Door width	mm	3700	3700	3700	3700
X-axis	mm	5500	6500	8500	10500
Y-axis	mm	4500	4500	4500	4500
Z-axis	mm	1250	1250	1250	1250
Distance from spindle nose to workbench	mm	400-1650	400-1650	400-1650	400-1650
Workbench width	mm	3200	3200	3200	3200
T-slot	mm	28	28	28	28
Bearing	t	28	32	36	40
Spindle speed	r/min	6000	6000	6000	6000
Spindle form		Direct connection type	Direct connection type	Direct connection type	Direct connection type
Power	Kw	22/26	22/26	22/26	22/26
Torque	N.m	770/910	770/910	770/910	770/910
Section of spindle box	mm	450	450	450	450
Specification of spindle cone hole		BT50	BT50	BT50	BT50
X-axis fast movement speed	m/min	12	12	12	12
Y-axis fast movement speed	m/min	12	12	12	12
Z-axis fast movement speed	m/min	12	12	12	12
Cutting Speed	m/min	10	10	8	8
Positioning accuracy X (semi closed loop)	mm	0.026	0.031	0.035	0.044
Positioning accuracy Y (semi closed loop)	mm	0.023	0.023	0.023	0.023
Positioning accuracy Z (semi closed loop)	mm	0.014	0.014	0.014	0.014
Repetitive positioning accuracy X (semi closed loop)	mm	0.018	0.021	0.023	0.029
Repetitive positioning accuracy Y (semi closed loop)	mm	0.016	0.016	0.016	0.016
Repetitive positioning accuracy Z (semi closed loop)	mm	0.008	0.008	0.008	0.008
Battery capacity	Kva	60	60	60	60
Mpa	Mpa	0.65	0.65	0.65	0.65
Machine tool height	mm	6600	6600	6600	6600
Land area	mm×mm	14800×7900	16800×7900	22200×7900	26200×7900
Net weight	T	87.5	100	120.5	135
operating system		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS
